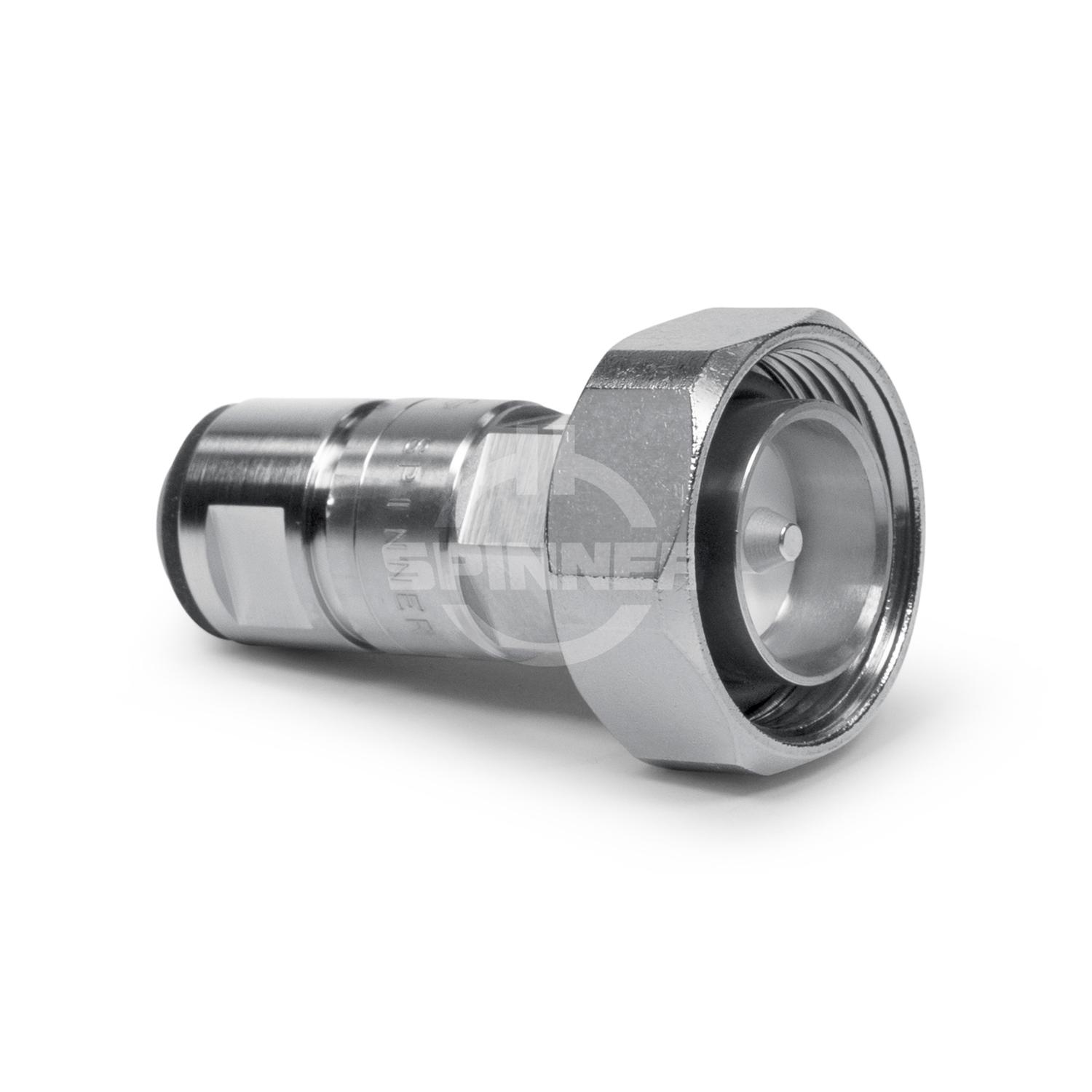

SPINNER 7-16 CONECTOR SF 1/2"-50 MULTIFIT

SPINNER 7-16 conector SF 1/2"-50 MULTIFIT. Heliax, Andrew, TimesMicrowave, Belden, Draka, CommScope, EUPEN cablu.

RF characteristics

Number of interfaces:  1
Interface type:  7-16 male (50 Ω) per IEC 61169-4
Interface direction:  straight
Mounting type:  none
Frequency range:  DC to 6 GHz
VSWR, max.:
     1.02 @ DC to 1.0 GHz
     1.03 @ 1.0 to 2.7 GHz
     1.06 @ 2.7 to 3.8 GHz
     1.14 @ 3.8 to 6.0 GHz

Mechanical characteristics

Cable entry type:  Spinner MultiFit®
Cable compatibility:  SF 1/2
Cable manufacturer types:
     SPINNER: SpinnerFlex® SF 1/2"-50
     Acome: HPL50-1/2 SF
     Andrew: FSJ4-50 B
     Draka: RFF 1/2"-50
     Eupen: EC4-50-HF
     Hansen: RF 50 1/2" S
     Hengxin: HRCAY-50-9
     Leoni: FlexLine 1/2" S
     LS Cable: HFSC 12 D
     RFS: SCF 12-50
Inner conductor:  copper-alloy / silver-plated
Outer conductor material / surface:  copper-alloy / CuSnZn-plated
Other metal parts material / surface:  copper-alloy / nickel-plated
Insulation:  PTFE
Housing sealing:  silicone rubber
IP protection level:  IP 68
IP protection level remark:  barrier and mating face sealed
Weight, approx.:  100.0 g
