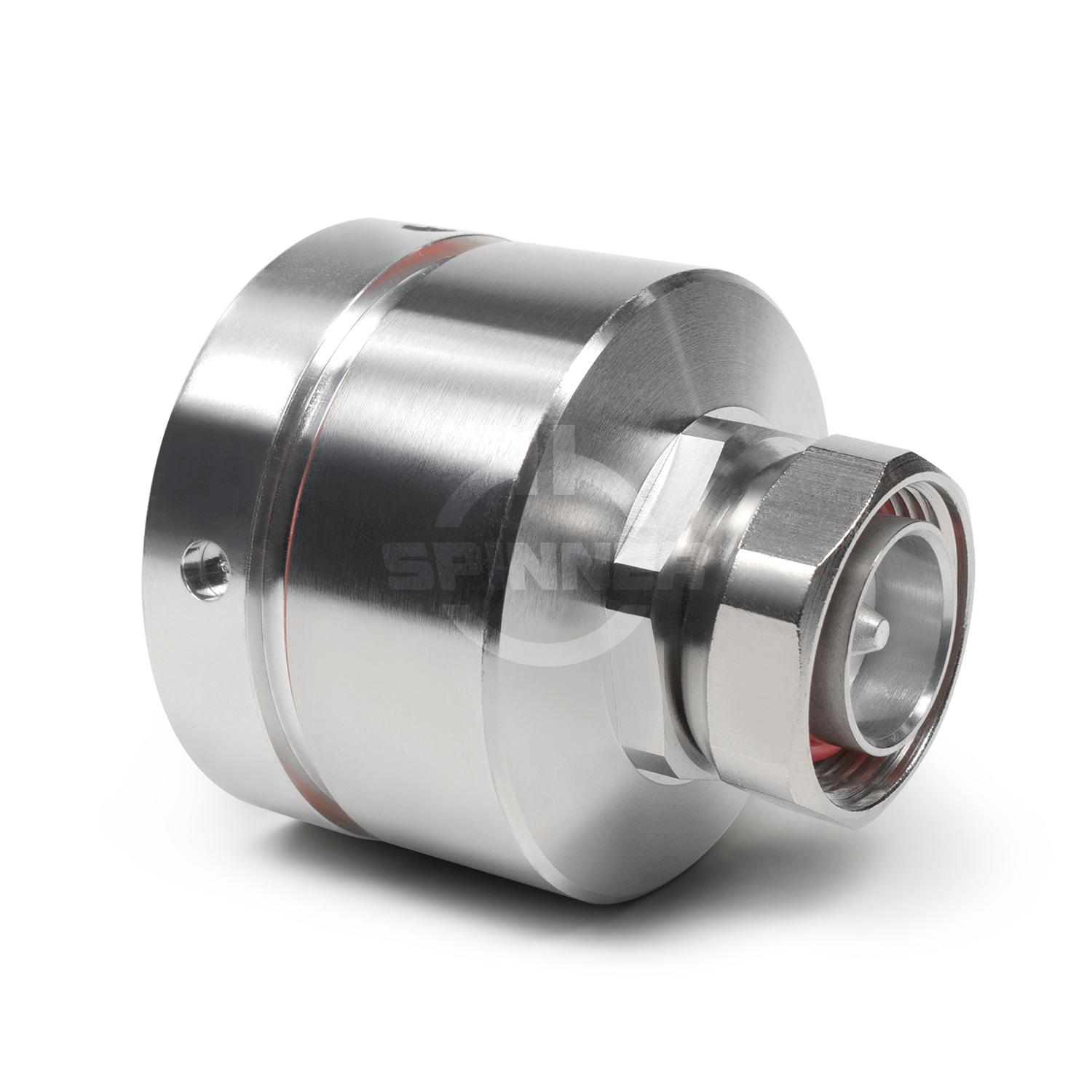

SPINNER 7-16 CONECTOR LF 1 5/8"-50 MULTIFIT

SPINNER 7-16 conector LF 1 5/8"-50 MULTIFIT. Heliax, Andrew, TimesMicrowave, Belden, Draka, CommScope, EUPEN cablu.


RF characteristics

Number of interfaces:  1
Interface type:  7-16 male (50 Ω) per IEC 61169-4
Interface direction:  straight
Mounting type:  none
Frequency range:  DC to 2.75 GHz
VSWR, max.:
        1.02 @ DC to 1.0 GHz
        1.03 @ 1.0 to 2.2 GHz
        1.06 @ 2.2 to 2.75 GHz

Mechanical characteristics

Cable entry type:  Spinner MultiFit®
Cable compatibility:  LF 1 5/8
Cable manufacturer types:

• SPINNER: SpinnerFlex® LF 1 5/8"-50
• Acome: HPL50-1 5/8 F
• Andrew: AVA7-50
• Draka: RFA 1 5/8"-50, RFA 1 5/8"-50 AL
• Eupen: EC7-50 A
• Hansen: RF 50 1-5/8"
• Leoni: FlexLine 1 5/8" R LowLoss
• LS Cable: LHF 42D Low Loss, HFC 42D Flexible Foam
• RFS: LCF 158-50 A, LCF 158-50 L

Inner conductor:  copper-alloy / silver-plated
Outer conductor material / surface:  copper-alloy / CuSnZn-plated
Other metal parts material / surface:
        copper-alloy / tin-plated
        copper-alloy / nickel-plated
        copper-alloy / CuSnZn-plated
Insulation:  PTFE
Housing sealing:  silicone rubber
IP protection level:  IP 68
IP protection level remark:  mated
Weight, approx.:  390.0 g
