Descriere

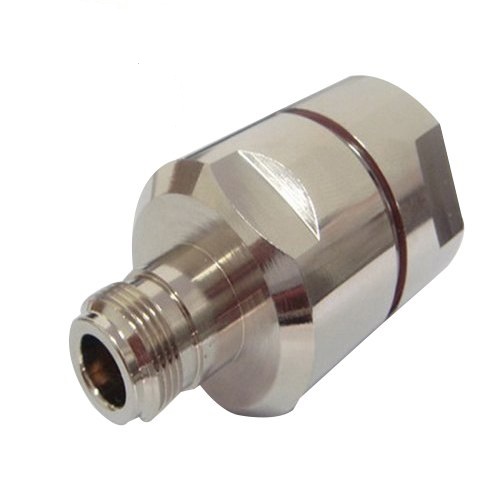

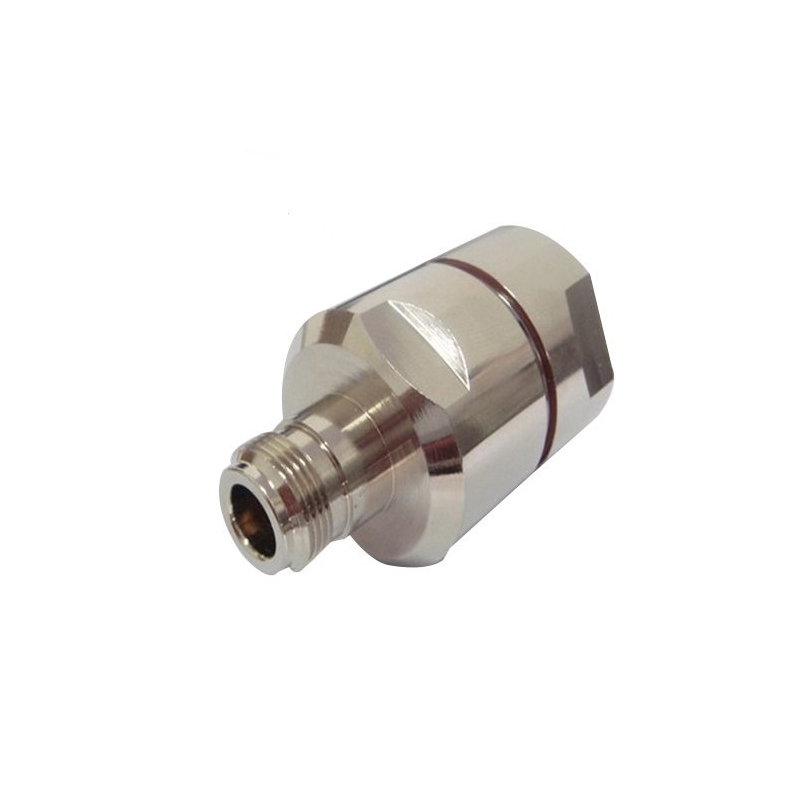

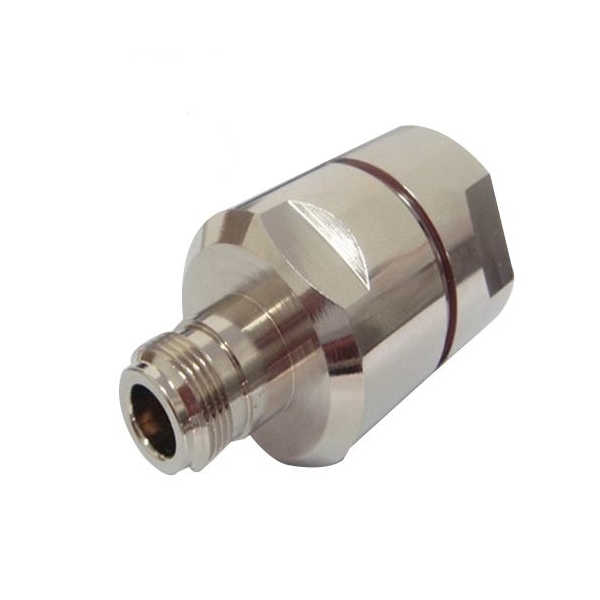

N female straight cable jack for 7/8’’ feeder cable
MATERIALS & PLATING
Description |
Material |
Surface Plating |
Shell/Body |
BRASS |
Nickel |
Contact pin |
PHOSPHOR BRONZE |
Gold |
Insulator |
PTFE |
|
PHARAMETERS:
Suitable standard | IEC 60169-16 |
Impedance | 50Ω |
Frequency range | max 3 GHz |
VSWR | <1.15 @ 0~3GHz |
PIM | -115dbm |
Dielectric Withstanding Voltage | 1500V (RMS) |
Contact Resistance | Center conductor ≤ 1.5mΩ, Outer conductor ≤ 1mΩ |
Insulation Resistance | ≥ 5000MΩ |
Mating | 5/8-24UNEF-2A |
Durability | ≥ 500 cycles |
Temperature range | - 40°C to +85 °C |
