Yaesu VCT-101 VC-TUNE unit / Yaesu FTDX-101D

Yaesu VCT-101 VC-TUNE Unit for VFO-SUB FTDX-101D - Installation must be carried out by our official service centre. Installation costs are not included in the price. Our colleagues in Nyíregyháza can provide more detailed information about the installation costs.

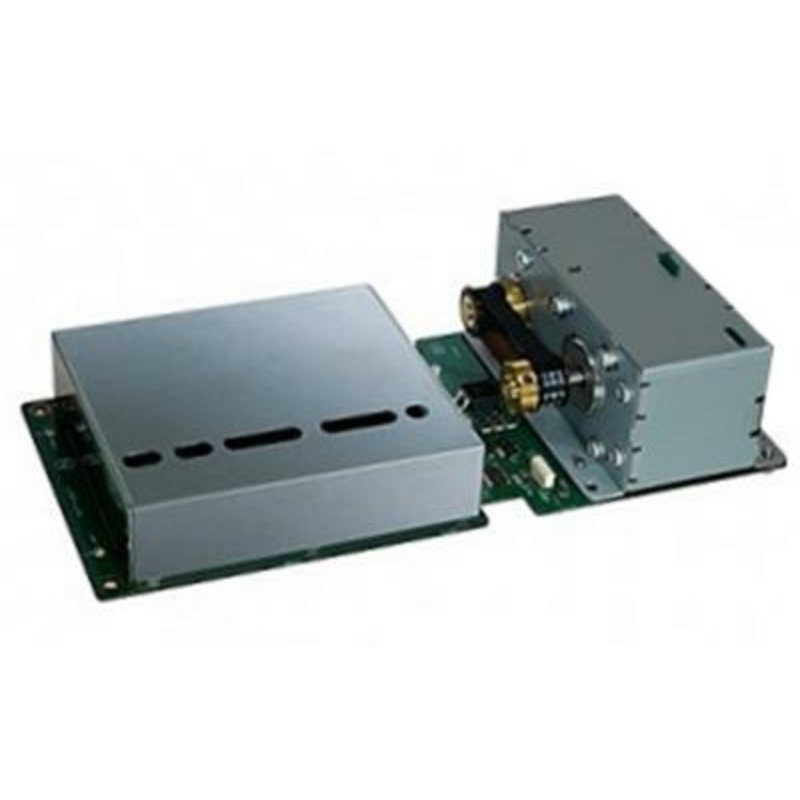

The Yaesu VCT-101 (VC-TUNE) is a high-precision, automatically tuned receiver preselector designed to significantly improve reception quality, especially in crowded band conditions.

The unit is based on a stepper-motor-driven variable capacitor, allowing extremely fine and accurate tuning. This ensures precise selection of the desired frequency range while effectively suppressing strong out-of-band signals. The VCT-101 provides excellent rejection performance, offering up to –70 dB attenuation outside the passband.

The VC-TUNE unit is particularly beneficial for DX operation, contesting, and operation in heavily congested RF environments, where nearby strong signals may overload the receiver front end. By using the VCT-101, users can achieve improved signal-to-noise ratio, reduced intermodulation, and cleaner, more detailed reception.

The VCT-101 is fully integrated with compatible Yaesu FT-DX101 series transceivers:

• FT-DX101MP: Both the Main-RX and Sub-RX are equipped with VCT-101 units

• FT-DX101D: The Main-RX includes the VCT-101, while the Sub-RX can be upgraded with the VT-101 preselector as an optional retrofit

The unit is controlled directly through the transceiver’s menu system, with fully automatic tuning that requires no user intervention.
