Descriere

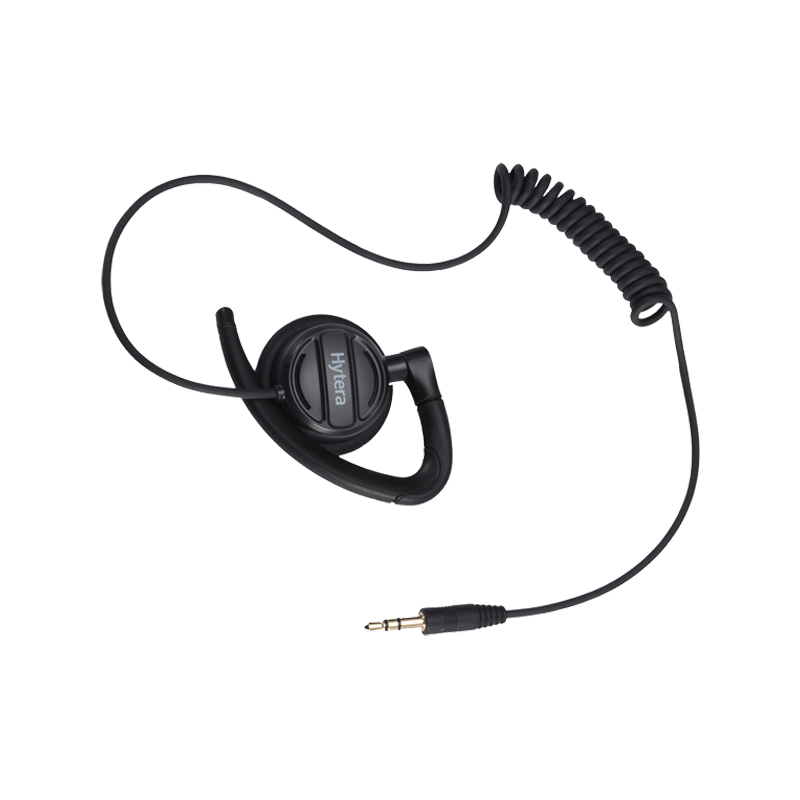

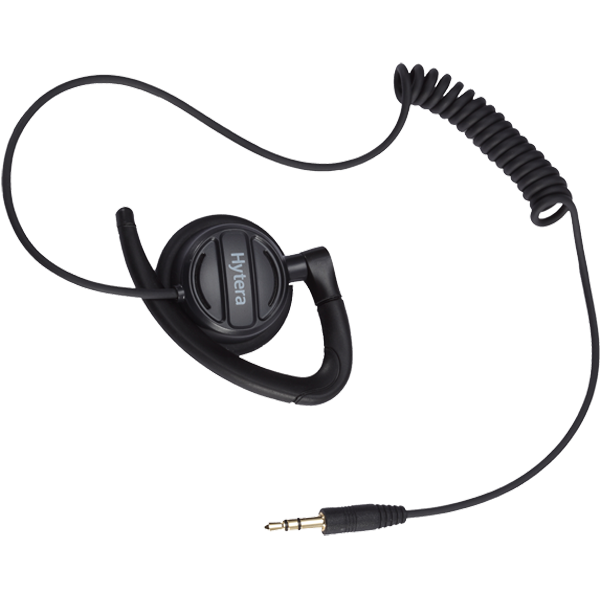

Căștile cu buclă G Hytera EH-02. Căști pivotante cu design ergonomic, cu mufă audio de 3,5 mm. Pot fi utilizate cu cablu PTT și microfon sau cu microfon cu difuzor la distanță.
Dispozitive compatibile combinate cu cablul de control PTT&MIC:
- ACM-01: TC-446S, TC-510, TC-610, TC-620, TC-700, PD4 and PD5 series
- ACN-01: PD7 series, PD985, PT560H, PT580H Plus
- ACN-02: X1e, X1p, Z1p, PD6 series, PDC550
- ACN-02P: HP5, HP6 and HP7 series, PDC680/PTC680 (A10), PDC550
- ACN-05: PDC680, PTC680, PDC760, PTC760
- ACS-01: BD3 series, PD3 series
- SM08M3: TC-446S, POWER446, TC-508, TC-610, TC-620, TC-700, BD505LF, PD505LF, BD505, BD555, BD615, PD405, PD415, PD485, PD505, PD565
- SM13M1: POWER446, TC-610, TC-620, TC-700
- SM13N5: TC-610P, TC-700P, TC-780, TC-780M, TC3000, TC3600
Specifications | |
Weight | about 16 g |
Color | black |
PTT key | none |
VOX | none |
Emergency key | none |
Connector | 3.5mm jack plug |
Speaker power | 50 mW (rated), 100 mW (max.) |
Speaker impedance | 150 Ω ±15% @1kHz |
Speaker frequency response | 115 ±3 dB @1kHz @ 50mW |
Ingress protection | none |
Operating temperature | –20℃ to 60℃ |
Storage temperature | –40℃ to 85℃ |
