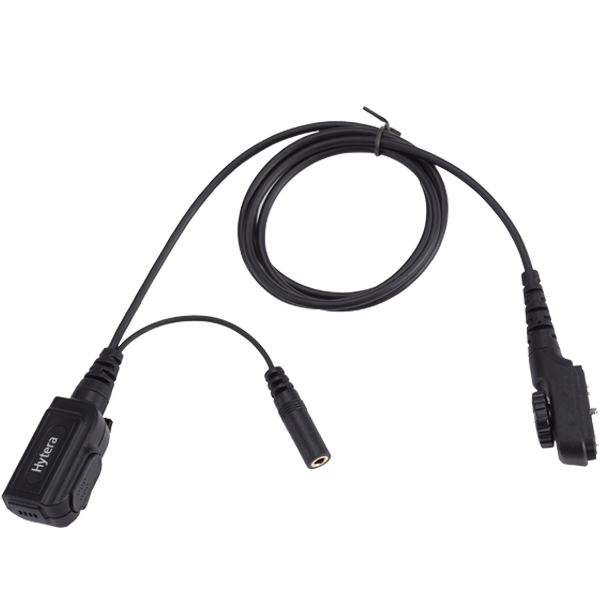

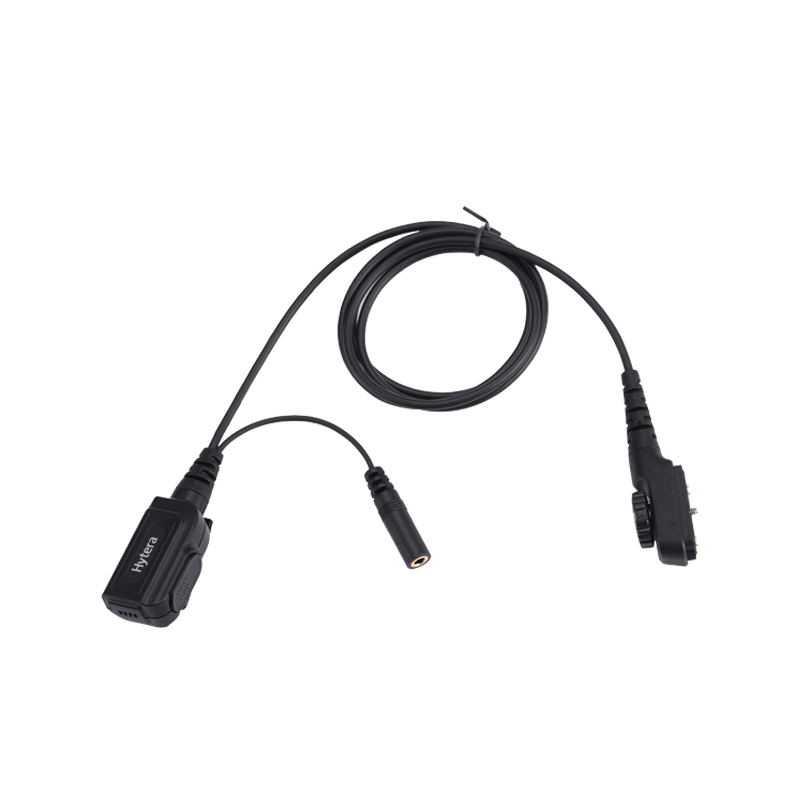

Hytera ACN-01 audio kit with PTT and microphone, without headphones
Descriere
Hytera ACN-01 audio kit with PTT and microphone, without headphones
PTT and MIC cable (for use with receive-only Earpiece). IP54 compliant base set with PTT button and microphone. Can be used with a range of Hytera earbuds such as ES-01, ES-02, EH-01, EH-02 or EHS20. Common 3.5 mm jack socket enables earbuds to be connected directly to the ACN-01. Easy replace earbuds for comfort and hygiene purposes. EUit can be clipped for comfortable wearing. Compatible with the Hytera PD705, PD705G, PD755, PD755G, PD785, PD785G, PD985, PT560H, PT580H Plus transceivers.
| SPECIFICATIONS | |
| Weight | about 37g |
| Color | black |
| PTT key | available |
| PTT cycles | ≥ 100,000 |
| VOX | YES (activation in conjunction with the radio's VOX function) |
| Emergency key | none |
| Radio connector | 16-pin connector |
| Earpiece connector | 3.5 mm jack socket |
| Microphone sensitivity | -45 ±3 dB @1kHz 3.0V 2.2K, 0dB=1V/Pa |
| Microphone impedance | ≤ 2.2 kΩ @ 1 kHz |
| Operating voltage | 1 - 10V DC |
| Ingress protection | IP54 |
| Operating temperature | -20°C to 60°C |
| Storage temperature | -40°C to 75°C |
| Suitable radios | PD705, PD705G, PD755, PD755G, PD785, PD785G, PD985, PT560H, PT580H, PT580H Plus |
| Applicable Hytera earbuds with 3.5 mm jack plug | EA-01, ES-01, ES-02, EH-01, EH-02 or EHS20 |
