Hytera S1 MINI stație business PMR446 - demo radio 1 buc.
Descriere
Hytera S1 MINI PMR446 transceiver - demo radio 1 pc.

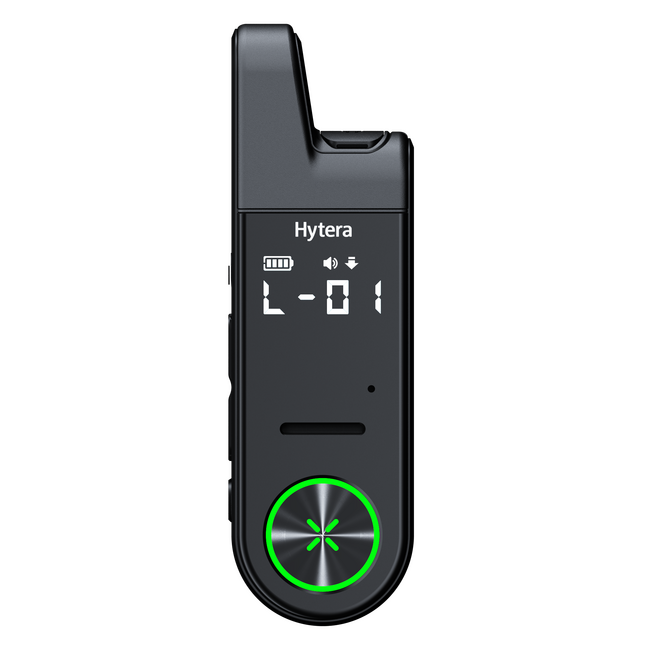

Hytera S1 mini LF is a tiny business-ready analog radio for restaurant, book store, or beauty salon, and more. It blends fashion and communication like never before—first-of-its-kind design, minimalist style, reliable PTT service, superb audio, long-lasting battery, and more. This radio helps you better stay connected with your team while staying focused on your customers.
Mini and Legant
Only 48 g weight. Go light as air. You can wear an S1 mini LF on the chest, pocket, belt, or lapel. The chic style is suitable for any outfits.
HD Screen
Anti-dirt. Anti-abrasion. Anti-oil. Let you clearly see the channel number, ID, battery level, or other key information.
Unique Label Design
The packing box contains three different colored labels that can be attached to the side of the S1 mini LF. Easy to spot your radio from the crowd.
Chat Privately
10 g standard headset — ergonomically engineered with ultra-soft silicone for perfect fit and long-time comfort, adjustable for either ear and delivering clear and pristine audio.
One Charge Double Shifts
750 mAh Li-polymer battery for 18 hours (0.5W) of working time and 100 hours of standby time. Universal USB Type-C charging port leaves you worry-free and unconstrained.
AirClone
Clone configuration data from one S1 LF mini to many. All done in a flash.
Channel Copy
Quickly communicate with your existing radios, regardless of brands and models. S1 mini LF protects your assets in its own way.
| SPECIFICATIONS | |
| Frequency range | PMR446:446 MHz |
| Operating modes | Analogue |
| Channels & zones | Channel capacity:16, Zone capacity:1 |
| Channel Spacing | 12.5kHz / 20kHz / 25kHz |
| Operating Voltage | 3.8 V (rated) |
| Battery | 750mAh Li-Polymer (built-in) |
| Battery life (5/5/90 duty cycle, with earpiece) | 18 hrs (Tx power 0.5 W) |
| Frequency Stability | ±2 ppm |
| Antenna Impedance | 50 Ω |
| Dimensions(H×W×D) mm | 99 x 30 x 16 mm (without belt clip) |
| Weight | 48 g |
| Display | 0.88 inch |
| Bluetooth | BT 5.0 BLE (only data) |
| Receiver | |
| Sensitivity | 0.14 μV (12 dB SINAD) |
| Adjacent Channel Selectivity | ETSI:60 dB @12.5kHz / 70 dB @20/25kHz |
| Intermodulation | ETSI:65 dB @12.5/20/25kHz |
| Spurious Response Rejection | ETSI:70 dB @12.5/20/25kHz |
| Blocking | ETSI：84 dB |
| Hum&Noise | 40 dB @12.5 kHz, 43 dB @20 kHz, 45 dB @25 kHz |
| Rated Audio Power Output | 0.5 W |
| Rated Audio Distortion | ≤ 5% |
| Audio Response | +1 ~ -3 dB |
| Conducted Spurious Emission | < -57 dBm |
| Transmitter | |
| Power Output | 0.5 W (446MHz) |
| FM Modulation | 11K0F3E @12.5 kHz, 14K0F3E @20 kHz, 16K0F3E @25 kHz |
| Conducted/Radiated Emission | -36 dBm＜1 GHz, -30 dBm＞1 GHz |
| Modulation Limiting | ±2.5 kHz @12.5 kHz, ±4.0 kHz @20 kHz, ±5.0 kHz @25 kHz |
| FM Hum&Noise | 40 dB @12.5 kHz, 43 dB @20 kHz, 45 dB @25 kHz |
| Adjacent Channel Power | 60 dB @12.5 kHz, 70 dB @20/25 kHz |
| Audio Response | +1 ~ -3 dB |
| Audio Distortion | ≤3% |
| Environment | |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -30°C to +70°C |
| ESD | ±4kV (Contact), ±8kV (Air) |
