Descriere
Caracteristicile includ un transceiver VHF construit compact, care oferă rezistența mecanică legendară a Yaesu și o putere mare de ieșire de până la 65 de Watts. Acest nou mobil este echipat cu un sinl de căldură care include un FACC extraordinar; Funnel Air-Convection Conductor (Wind Tunnel).FACC adună aer rece printr-o intrare frontală larg deschisă, și concentrează fluxul de aer către zona critică a amplificatorului final, tras de un ventilator din spate.Datorită disufozului frontal de 3 wați, puteți vorbi de o calitate superioară a sunetului și veti avea comunicații fără stres - chiar și în medii zgomotoase și dure.

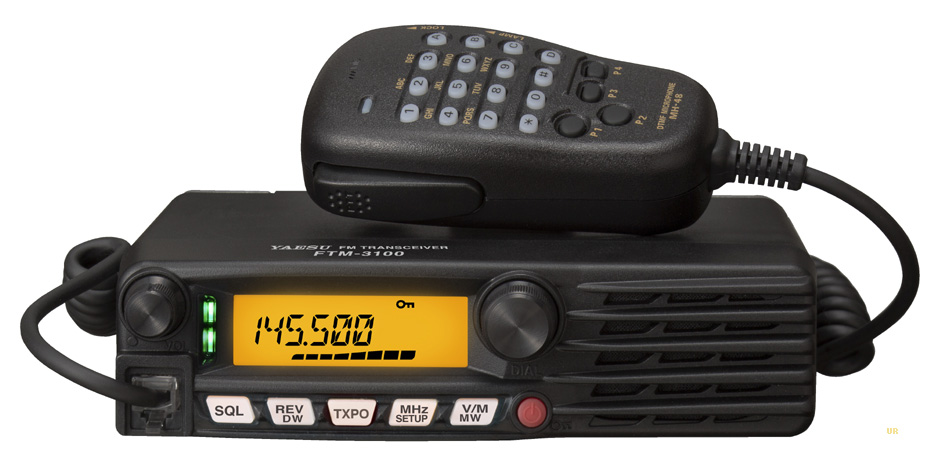

Yaesu FTM-3100E transceiver specificatii:
- 65/30/5W RF Power Output
- Heavy Duty Heat Sink with FACC Funnel Air Convection Conductor (Wind Tunnel)
- Loud 3W Audio for noisy environments witht he front speaker
- Expanded receiver coverage 136-174 MHz
- 220 Memory Channels with alpha-numeric tags (Maximum 8 characters)
- CTCSS (50 tones) and DCS (104 codes) Encode/Decode, with split tone and DCS Encode-Only Capability
- Tone/DCS search scanning
- DCS code inversion
- Memory only mode
- Seperate transmit frequency memories (odd splits)
- Time-out timer
- Automatic power off (APO)
- Busy channle lock out (BCLO)
- Rugged High output power 65W amplifier with efficient die-cast chassis
- Bight Multi coloured status indicator vibrantly displays the transceivers state
Yaesu FTM-3100 transceiver continut cutie:
- DTMF Microphone MH-48A6JA
- Mobile Mounting Bracket(Attachment screw set)
- DC power cable w/Fuse
- Spare fuse (25 A)
- USB cable
- Operating Manual
- Safty Guide
- Warranty Card
Statiile radioamatori pot transmite numai în benzile de radioamatori cu setarile din fabrica. Extensia frecvenței este contra cost. Vedeți produsele asociate!
SPECIFICAȚII | |
Frequency Range | Tx 144 - 148 MHz Rx 136 - 174 MHz |
Channel Step | 5/6.25/10/12.5/15/20/25/50/100 kHz |
Standard Repeater Shift | ±600 kHz |
Frequency Stability | ±10 ppm [-4 °F to +140 °F (-20 °C to +60 °C)] |
Modes of Emission | F3E |
Antenna Impedance | 50 Ohms, unbalanced |
Supply voltage | 13.8 V DC ±15%, negative ground |
Current Consumption (typical) | Rx:less than 0.7 A, less than 0.5 A (squelched) Tx:15 A (65 W) /10 A (30 W) /5 A (5 W) |
Operating Temperature Range | -4° F to +140° F (-20° C to +60° C) |
Case Size (WxHxD) | 6.1” x 1.7” x 6.1” (154 x 43 x 155 mm) (w/o knobs) |
Weight (Approx.) | 2.86 lb (1.3 kg) |
Transmitter | |
Output Power | 65/30/5 W |
Modulation Type | Variable Reactance |
Maximum Deviation | ±5 kHz (Wide) ±2.5 kHz (Narrow) |
Spurious Radiation | Better than -60 dB |
Microphone Impedance | 2k Ohms |
Receiver | |
Circuit Type | Double Conversion Superheterodyne |
Ifs | 1st 47.25 MHz, 2nd 450 kHz |
Sensitivity (for 12dB SINAD) | 0.20 μV (Ham band, wide) 0.22 μV (Ham band, narrow) |
Selectivity (–6/–60dB) | 12 kHz/28 kHz |
Maximum AF Output | 3 W @ 13.8 V, 10% THD |
Rated values are at normal temperature and pressure. | |
Ratings and specifications are subject to change without notice. |
