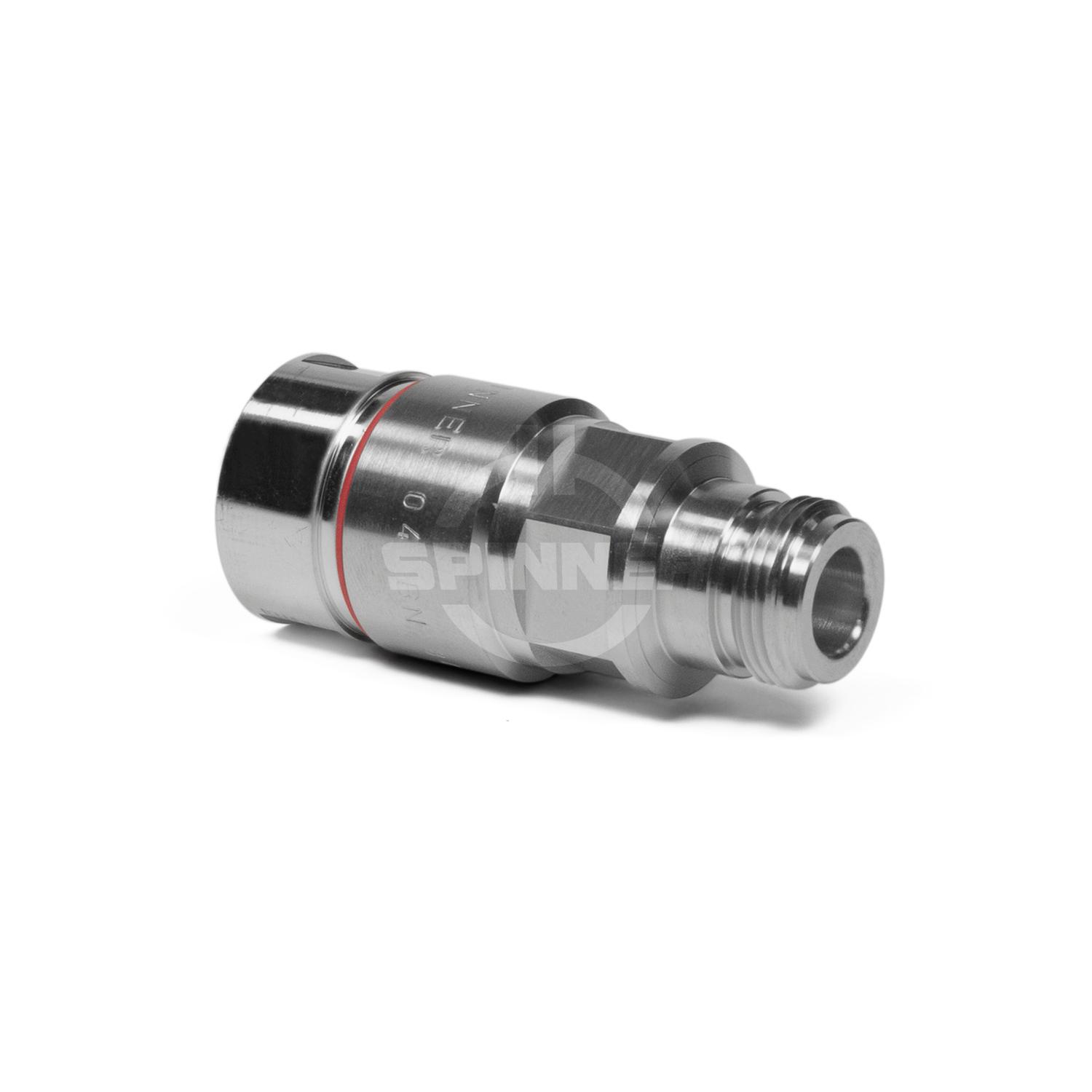

SPINNER N FEMALE CONECTOR LF 1/2"-50 MultiFit

SPINNER N female conector LF 1/2"-50 MultiFit. Heliax, Andrew, TimesMicrowave, Belden, Draka, CommScope, EUPEN cablu.


RF characteristics

Number of interfaces:  1
Interface type:  N female (50 Ω) per IEC 61169-16
Interface direction:  straight
Mounting type:  none
Frequency range:  DC to 6 GHz
VSWR, max.:
     1.02 @ DC to 1.0 GHz
     1.03 @ 1.0 to 2.7 GHz
     1.08 @ 2.7 to 3.8 GHz
     1.10 @ 3.8 to 6.0 GHz

Mechanical characteristics

Cable entry type:  Spinner MultiFit®
Cable compatibility:  LF 1/2
Cable manufacturer types:
     SPINNER: SpinnerFlex® LF 1/2"-50
     Acome: HPL50-1/2 F
     Andrew: LDF4-50 A
     Draka: RFA 1/2"-50
     Eupen: EC4-50
     Hansen: RF 50 1/2"
     Hengxin: HCAAY-50-12
     Leoni: FlexLine 1/2" R
     LS Cable: HFC 12D Flexible Foam
     RFS: LCF 12-50, LCF 12-50 L
Inner conductor:  copper-alloy / silver-plated
Outer conductor material / surface:  copper-alloy / CuSnZn-plated
Other metal parts material / surface:
     copper-alloy / tin-plated
     copper-alloy / CuSnZn-plated
Insulation:  PTFE, PE
Housing sealing:  silicone rubber, EPDM
IP protection level:  IP 68
IP protection level remark:  connected with appropriate gasket
Weight, approx.:  80.0 g
