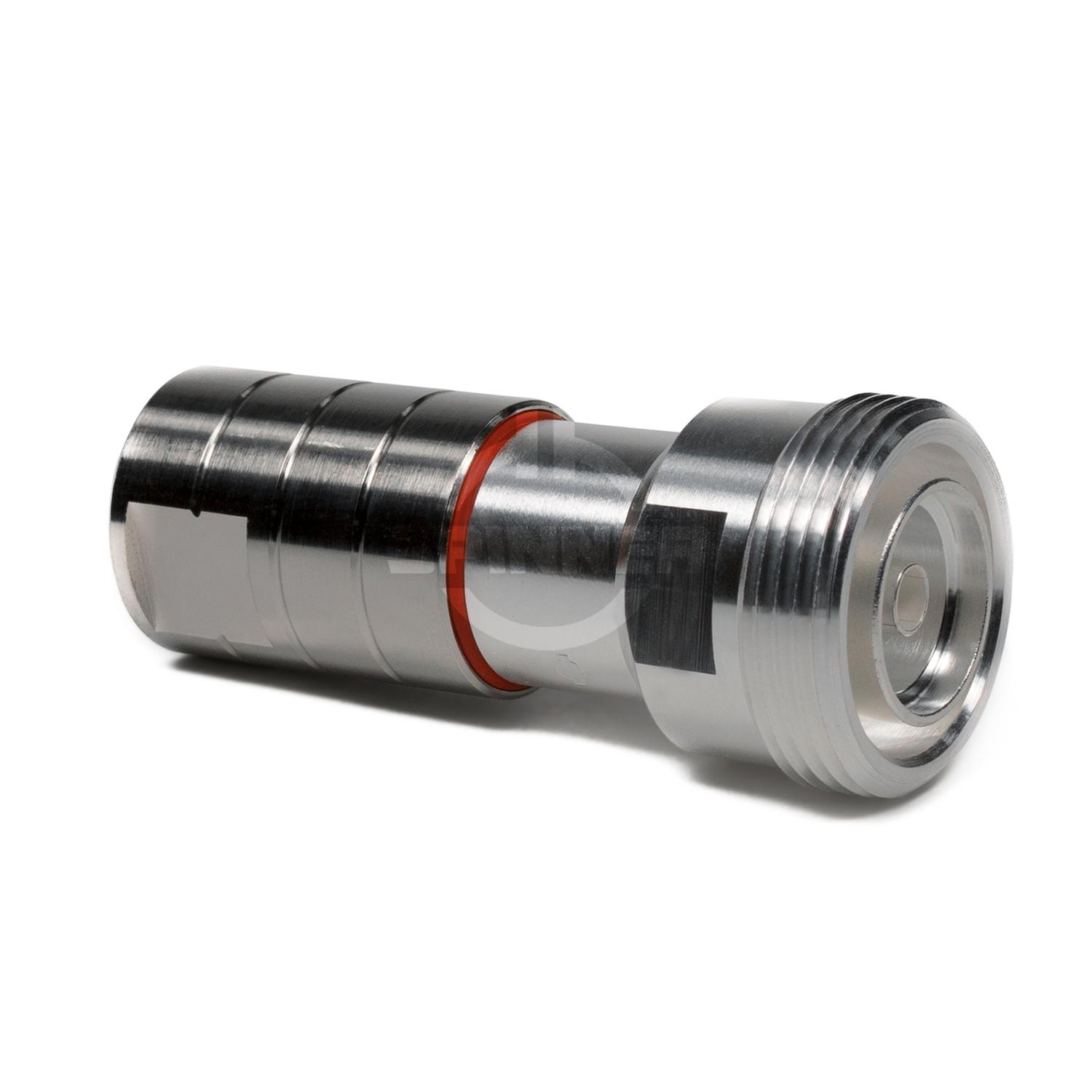

SPINNER 7-16 FEMALE CONECTOR SF 1/2"-50 CAF
Descriere
SPINNER 7-16 female conector SF 1/2"-50 CAF. Heliax, Andrew, TimesMicrowave, Belden, Draka, CommScope, EUPEN cablu.
RF characteristics
Number of interfaces: 1
Interface type: 7-16 female (50 Ω) per IEC 61169-4
Interface direction: straight
Mounting type: none
Frequency range: DC to 3.8 GHz
VSWR, max.:
1.02 @ DC to 1.0 GHz
1.03 @ 1.0 to 2.7 GHz
1.06 @ 2.7 to 3.8 GHz
Mechanical characteristics
Cable entry type: CAF®
Cable compatibility: SF 1/2
Cable manufacturer types: RFS: SCF 12-50
Inner conductor: copper-alloy / silver-plated
Outer conductor material / surface: copper-alloy / silver-plated
Other metal parts material / surface: copper-alloy / nickel-plated
Insulation: PTFE
Housing sealing: silicone rubber
IP protection level: IP 68
IP protection level remark: connected with appropriate gasket
Weight, approx.: 140.0 g
