Toroid ferită filtru RFI FB-31-1020
Descriere

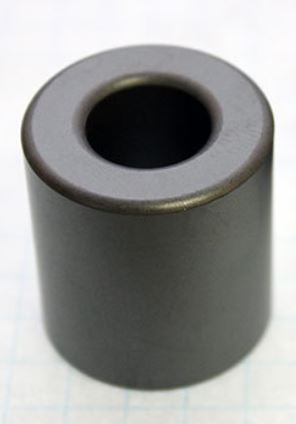

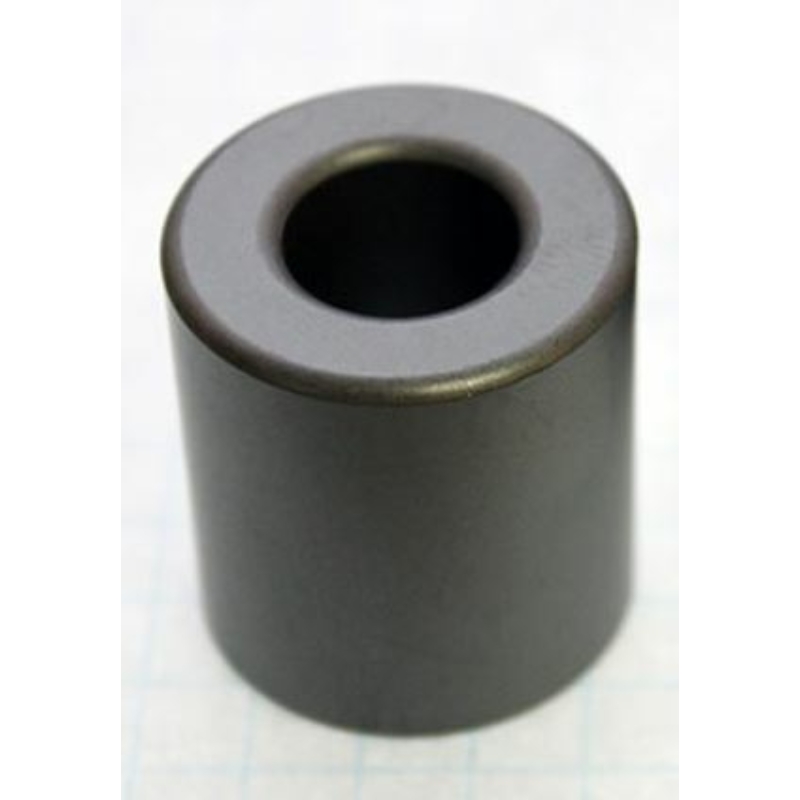

Amidon FB-31-1020 PERLE DE FERITĂ. Cele mai bune pentru bobine de radiofrecvență. Al=5700. Datorită diametrului interior mare, este ușor de aplicat pe cabluri coaxiale RG213, RG8.
Physical Dimensions OD(A) = 1.020 in / 25.90 mm +/- 0.75 mm ID(B) = 0.505 in. / 12.80 mm +/- 0.25 mm Ht(C) = 1.125 in. / 28.60 mm +/- 0.80 mm |
| AL=5700 +/- 20 % uH=(AL*Turns2)/1000 Actual measured AL using 10 turns #28 wire |
| Temperature Stability (ppm /°C) = 16000 |
| Color Code = shiny black |
| Application Freq Range RFI Suppression 1 - 300 MHz |
The Al-factor and 1 turn Z impedance FRQ charts of the ferrite core can be downloaded from the attached documents.
| Weight | 55 g |
| Material | MnZn (31) |
| Impedance | min 260 Ω @ 100 MHz ± 20% |
| RoHS compliant | yes |
